Monday, June 18, 2018

.NET Core app that talks with Graph API and Azure functions

1 Introduction


This article is going to describe how to create a function app on .NET Core and publish it into Azure, this function app url is going to act as a notification url. In Graph API, we are going to use subscription API, to subscribe to SentItems folder in mail box, whenever we are going to send an email, function app gets notification about the changes and mail details.

2 Background



3 Prerequisites


  • In this article, we are going to create a function in Visual Studio 2017 with .NET Core 2.0 version, If you want to update your .NET Core version, check here .NET Core latest version
  • Then we are going to publish the function app to Azure, if you dont have a azure subscription, try to get a free account to test this sample application, Azure free account
  • We used postman to test our function, Get postsman

4 Create Azure Function App


Let's see how we can create a function app in Visual Studio on top of .NET Core and how to publish it to Azure


4.1 Create basic solution in Visual Studio


Open Visual Studio, I have installed Visual Studio 2017 Enterprise edition with version 15.6.6

Go to File -> New -> Project, You will see New Project window like this, Select Azure Functions to create a Azure Function project. Give it a name and a location and click OK, In this sample I created it as SendEmailTrigger



You can see a window to select a function template as below, It shows two different versions of Azure Functions v1 & v2,

Azure Functions v1 built with .NET Framework and its generally available, and Azure Function v2 goes with .NET Core and at the time of writing this article, its available only in preview.

Major difference in Azure Function run time v1 and v2 is, v1 doesn't support cross platform development and hosting options.

v1 supports development and deployments in portal or in windows. But v2 runs on .NET Core, that means it can run on all the platforms including mac OS and Linux.

When it comes to language support for both versions, v1 supports for C#, Javascript and F#, v2 supports for those 3 languages & Java.

In v1, it supports for Python, Php, Typescript, Batch commands, Bash and powershell in experimental level and those languages are not available in version 2

 When it comes to bindings, cool feature is, binding extensions can be versioned and released independently, since v2 has decoupled run time and bindings, So we can upgrade to a newer version of an extension

Version 2 has introduced many new bindings based on Microsoft Graph (Excel, OneDrive, Outlook email, Graph events, Graph auth tokens), In this post we are going to discuss about Microsoft Graph Excel binding in .NET Core

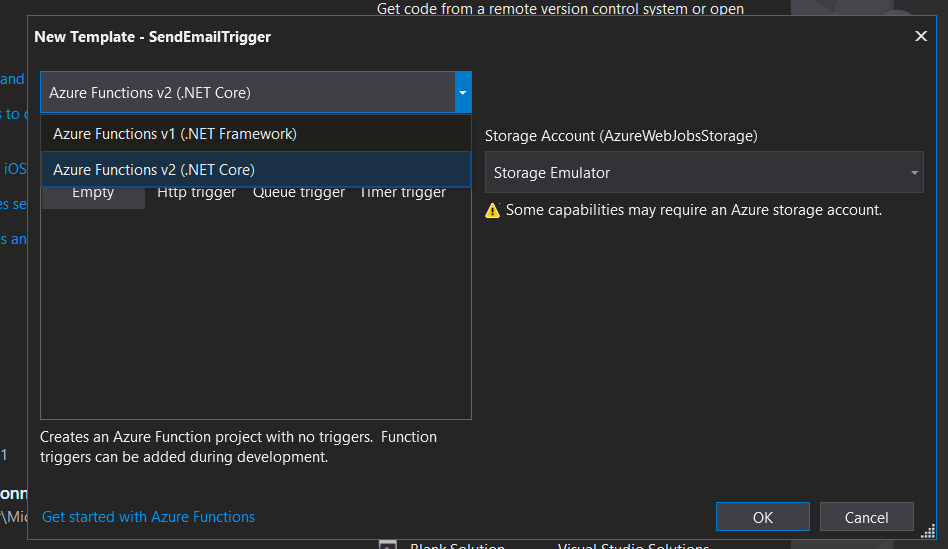

For our example, select Azure Functions V2 (.NET Core) as below


You can see the available templates as below, select Http trigger from the list,

 In this example, for Storage account, leave the default value as it is, or else we can add already existing storage account in azure by clicking on browse option.

Storage account is used to store function files, logging information and also blobs, queues or tables if your function use them.

In this example, selected Anonymous as access rights, it doesn't require any authentication to call the function.
If you select Functional level access, you have to pass function key in each and every request that can be  managed from the azure portal, that's the safest way, but for now will go with anonymous.
In Admin access level with function key, it will return 401 - no authentication, we have to pass host key if we go with Admin access level


When you hit on OK, it will show a dialog to update Azure Function CLI tools as below if you dont have the latest tool set,


In this example, it installs Azure Function CLI tools 1.0.12


You can see the solution like this, It has created a function in Function1 class file


You can see Httptrigger is created in Function1 class and you can notice authorization level is anonymous.

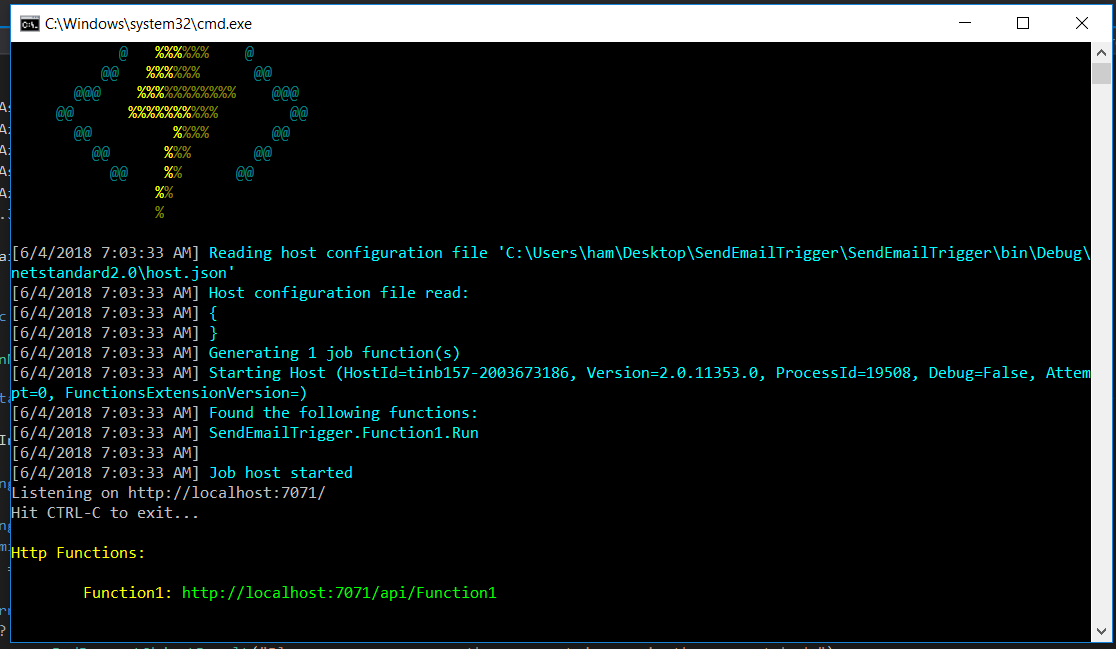

Run the project, click on Debug -> Start without Debugging, it will show a cmd window like this, At first, It's going to check whether any configurations available in host.json file. You can access the function in given url as below


4.2 Call the function from browser

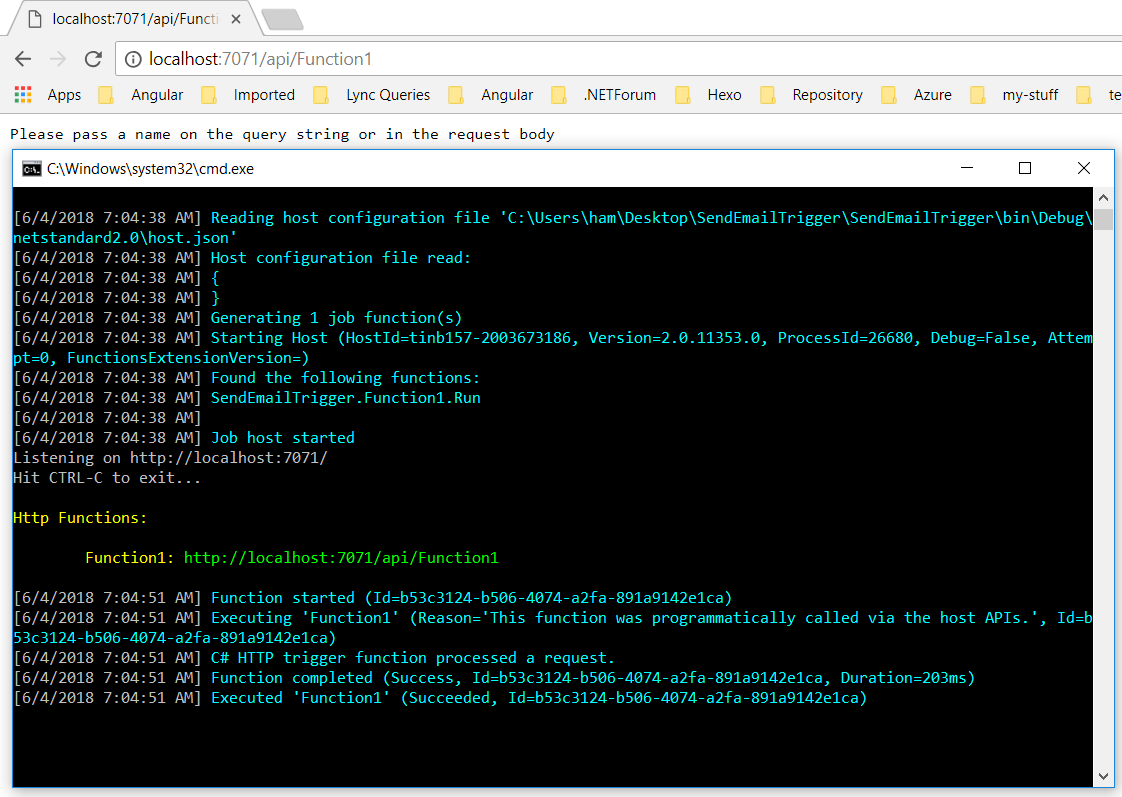

Let's call the function from browser and it shows function output as below. We haven't passed name parameter when calling the function, it returns a bad request as this. If you look at the cmd, it shows the logging information on function execution like this


Change function name Function1 to EmailTrigger and run the solution, it has changed the function url as below



4.3 Call the function from postman


Open postman and call function, provide name parameter in function url, it will show output like this


4.4 Host your function in Azure


Let's publish this function to Azure. In solution explorer, click on solution file and select publish option


You will see a window to publish your function, Since we are going to create an application from the beginning, select Create New option


You will see this window to create the app service, You can give a name to your application and select azure subscription
In Resource group section, click on New, it will prompt you a dialog box as below. You can give a name to the resource group and click on OK
Resource group is a collection of resources that are grouped together for easy management. When you work with an application, you can group all resources relevant to the application in a one place and remove all of then in a single click by deleting the resource group


Click on New link under Hosting Plan, you get a screen like this, You can give a name to App Service Plan and a Location to host the hosting plan
You can select Consumption for size requirement, In Consumption plan, resources are dynamically added to your application as per requirements, and you only pay for the time your function app runs, If you go with the other size options, it will act as a App Service plan, that means your function app runs on a dedicated VM similar to Web apps, API apps and mobile apps, your function app is always running.


Click on New in Storage Account section, you will get a window like this.
You can give a storage account name and select a account type, lets go with basic, standard account


Finally we are good to go, We can see a resource group, hosting plan, storage account and function app is getting created with the configurations we provided, Let's hit the create button !


You can see the publish summary along with the function url in following window,


You will get a prompt to update the version of the function app, since we use Function v2, we have to change the version to beta


Click on Output window, you will see details on function app publish



4.5 View function configuration in Azure


Open Azure portal, click on All resources

Go to All resource groups drop down and filter from MailTrigger, you will see available resources as below, function app, service plan & storage account


Click on MailTrigger App service, it will open a window like this. You can see the subscription of the function app, resource group, location, url to access the function and service plan we selected


Go to Function app settings, you will see runtime version is assigned to beta

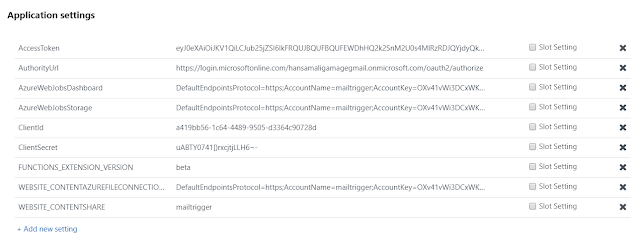

Go to Application settings from overview section of the function app, you can see FUNCTIONS_EXTENSION_VERSION has been changed to beta


You can see available functions in MailTrigger function app, click on EmailTrigger function, you get a window like this, it shows function.json file contains bindings, authorization details and entry point to the application

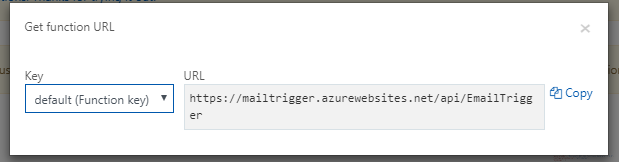

Click on Get function URL and you can copy the function url. We can notice MailTrigger is the Function App, under that it shows function EmailTrigger that we are going to test


Go to postman, we can test published function as below, pass name parameter and check the output in the body section


Click on Run button, after you call the function from postman, you can see the function log as below.


You have published the function in to azure and its running perfectly, Let's move in to Graph API

5 Create application in Graph API


Microsoft Graph is the API for Microsoft 365 that provides access to all the data available in Office 365, we can connect to mail, calendar, contacts, documents, directories, users. Microsoft Graph exposes APIs for Azure Active Directory, Office 365 services like Sharepoint, OneDrive, Outlook, Exchange, Microsoft Team services, OneNote, Planner, Excel

You can find a picture i copied from Microsoft Graph overview


5.1 Create first application with Microsoft Graph

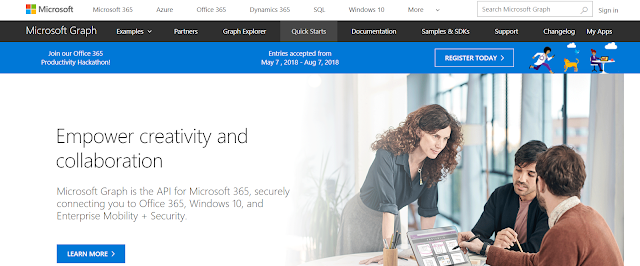

Go to Microsoft Graph and click on Quick Starts, you will get a window like this


You can build a simple application by following below steps, let's try it out


In the first step, let's select ASP.NET MVC from the list


Click on the button to register your application in the portal, You need to have a Microsoft account or a school or work type of account


You can see the app secret, will copy it for future references. After that click on the button, you will get redirected to the Quick Start page

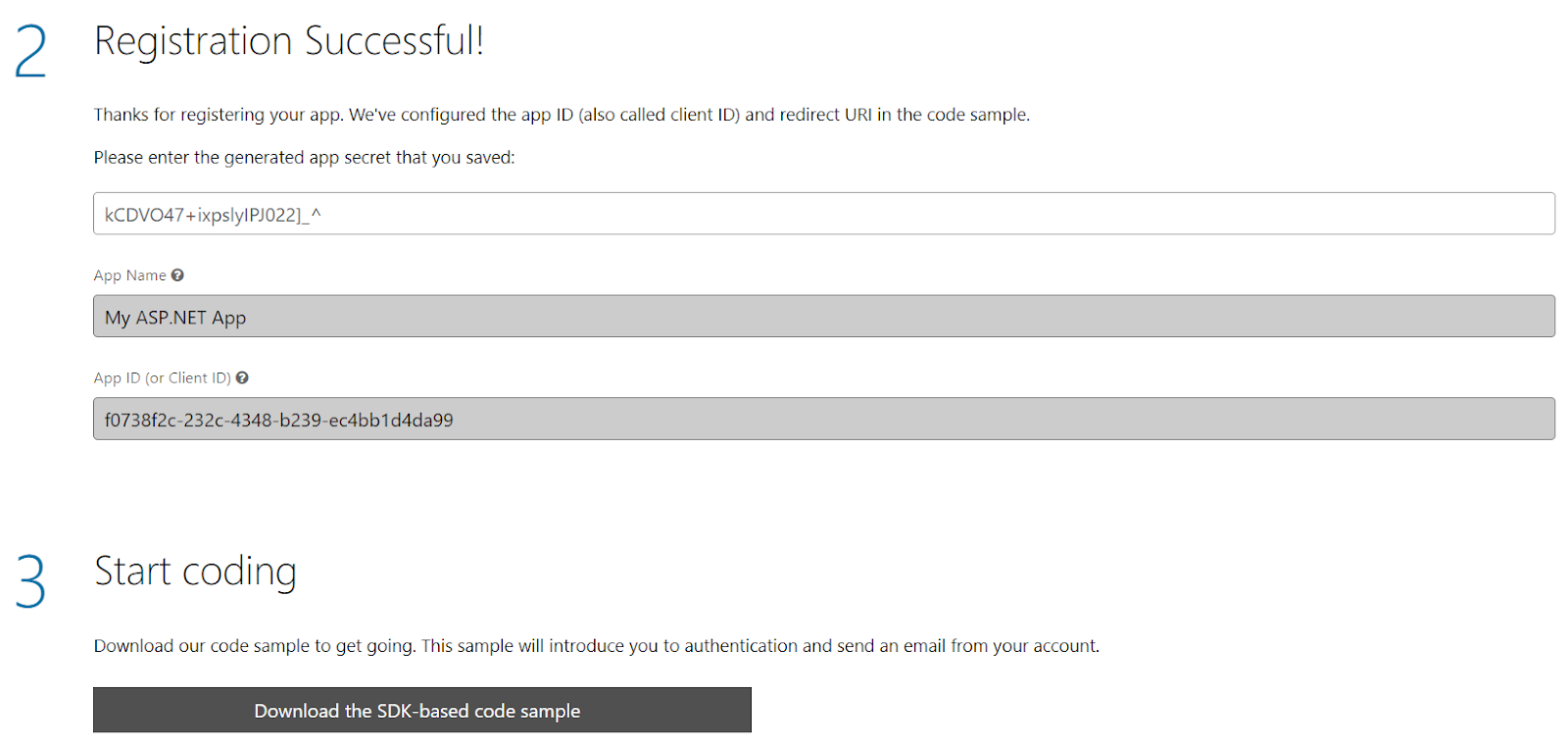

Paste app secret into the below text box and download the generated code sample


You can see the downloaded code sample as below


In 4th step, click on Application Registration Portal to configure your new application


You can see available applications under your account, click on application name


Go to Microsoft Graph Permissions to add few application permissions to access email, Click on Add button in Application Permissions section


You can see available permissions to select for an application, Calendar, call, mail and user permissions

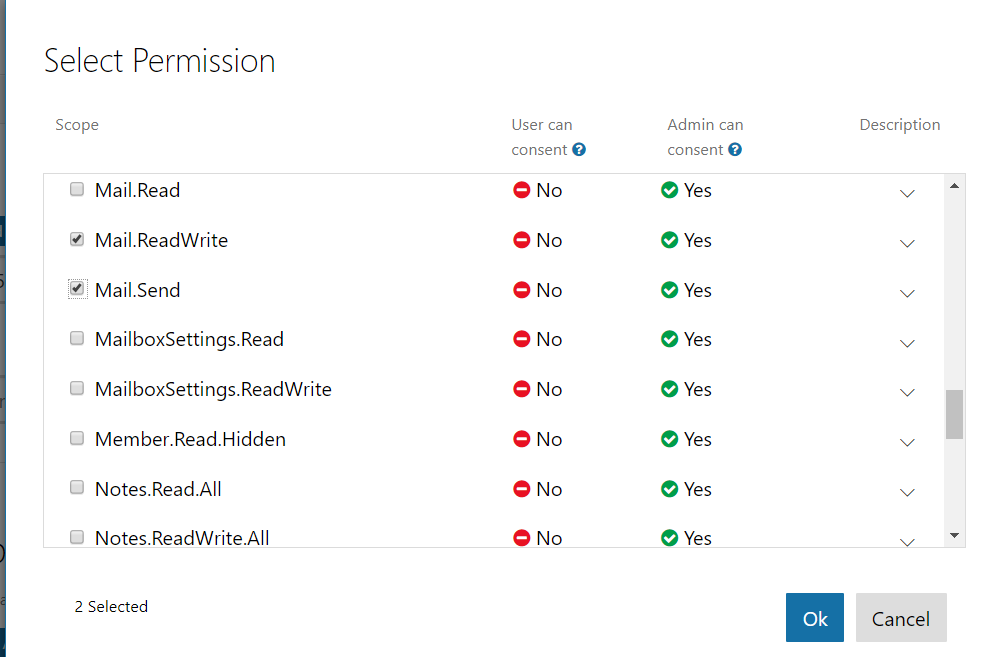

We have to assign permissions to read email and send email, select Mail.ReadWrite & Mail.Send permissions to assign to the application and save changes


You can see Mail related permissions are allocated to the application as below. Azure function is running without any user interaction, so it should have these permissions


5.2 What is Graph Explorer


Go to Microsoft Graph and navigate to Graph Explorer, You can query available data in Office 365 from here, Let's run few queries and check its output
Check following image, even without signing in we can run these queries and check the result, You can access your personnel data with these api calls
Graph explorer is a http request tool for issuing request against Microsoft graph


Click on my photo GET request from sample queries


We can click on Run Query, you will get the result as the profile photo with status code 200, In this sample queries we are using Megan Bowen's account


Let's click on my profile, it will show profile details of the logged in user


If you want to access other available APIs, click on show more samples


You will get a window like this with available APIs and data you can view, You can access to emails, Calendar, Contacts, Excel, OneDrive etc



5.3 Explore Subscription API


A subscription allows a client app to receive notification about changes to data in Microsoft Graph. Subscriptions are available for Mail, Events, Outlook Contacts, Conversations, OneDrive, Users & Groups in Azure Active Directory

 You can login with your Microsoft account, work or school account, Let's create a subscription to a webhook with our function url, In here we are going to create a web hook subscription to check on SentItems folder in your mail box. You can find the API reference to create a subscription as below

 POST https://graph.microsoft.com/v1.0/subscriptions
Content-type: application/json

  {
    "changeType": "created,updated",
    "notificationUrl": "https://webhook.azurewebsites.net/api/send/myNotifyClient",
    "resource": "me/mailFolders('Inbox')/messages",
    "expirationDateTime":"2016-11-20T18:23:45.9356913Z",
    "clientState": "subscription-identifier"
 }

When we are going to create the subscription, at first its going to validate the subscription by calling POST request on notification url, https://webhook.azurewebsites.net/api/send/myNotifyClient?validationToken=<token> Its going to validate passed validationtoken
So let's change our function app to validate the validationtoken and return it

Change Run method to validate the token, Let's change Run method to call validate method and returns text response, Note that we changed function authorization level to function level


[FunctionName("EmailTrigger")]
public static HttpResponseMessage Run([HttpTrigger(AuthorizationLevel.Function, "get", "post", Route = null)]HttpRequestMessage req, TraceWriter log)
{
   log.Info("C# HTTP trigger function processed a requesttt.");

    string validationToken;
   if (GetValidationToken(req, out validationToken))
  {
    return PlainTextResponse(validationToken);
  }

  return new HttpResponseMessage();
}

Let's implement token validation method as follows, We have to import Microsoft.AspNetCore.WebUtilities to do that



private static bool GetValidationToken(HttpRequestMessage req, out string token)
{
 var query = QueryHelpers.ParseQuery(req.RequestUri.Query);
 token = query.FirstOrDefault(w => w.Key == "validationToken").Value;
 return !string.IsNullOrEmpty(token);
}

Let's return validation token after code validation succeeds like this



private static HttpResponseMessage PlainTextResponse(string text)
{
 HttpResponseMessage response = new HttpResponseMessage()
 {
   StatusCode = HttpStatusCode.OK,
   Content = new StringContent(text, System.Text.Encoding.UTF8, "text/plain")
 };
 return response;
 }

Let's publish latest function app to azure


After publishing function app to azure, you can see function.json file authLevel has been changed to function


5.4 Configure subscription API on mail box


Let's go to Graph Explorer and try to create a subscription, we have implemented our function to return validationtoken when it has a valid token, so lets see how it works
You can see, we got 201 success status code, subscription is created and response is returned with an identifier


We have calles POST /subscriptions request with following json body, note that expiration date should be within 36 hours from now

{
 "changeType": "created,updated",
 "notificationUrl": "https://mailtrigger.azurewebsites.net/api/EmailTrigger?       code=rxUodDSB3cdrlVrFgCfT4SiC9eOBKqwxDNsAcmgndHQIpEWepYgx5w==",
 "resource": "me/mailFolders('SentItems')/messages",
 "expirationDateTime":"2018-06-13T18:23:45.9356913Z",
 "clientState": "subscription-identifier"
}

We passed https://mailtrigger.azurewebsites.net/api/EmailTrigger?code=rxUodDSB3cdrlVrFgCfT4SiC9eOBKqwxDNsAcmgndHQIpEWepYgx5w== as notificationUrl,

When its creating the subscription, it sends a request to validate the subscription with following url, https://mailtrigger.azurewebsites.net/api/EmailTrigger?validationToken=rxUodDSB3cdrlVrFgCfT4SiC9eOBKqwxDNsAcmgndHQIpEWepYgx5w==

If you ping the local url in postman, you can see it as below, it returns validationtoken in the response



Let's change Run method in function to process SentItems mail folder changes, Change Run method signature as a async method and add new code lines to process changes in mail box



public static async Task Run([HttpTrigger(AuthorizationLevel.Function, "get", "post", Route = null)]HttpRequestMessage req, TraceWriter log)

var response = await ProcessWebhookNotificationsAsync(req, log, async hook =>
{
   return await CheckForSubscriptionChangesAsync(hook.SubscriptionId, hook.Resource, log); });
return response;

Implement ProcessWebhookNotificationsAsync method to process the request body, for the time being lets log the body of the request, so we can understand what kind of a notification comes


private static async Task ProcessWebhookNotificationsAsync(HttpRequestMessage req, TraceWriter log, Func> processSubscriptionNotification)
{
 // Read the body of the request and parse the notification
 string content = await req.Content.ReadAsStringAsync();
 log.Verbose($"Raw request content: {content}"); return   req.CreateResponse(HttpStatusCode.NoContent);
 }

 Let's implement CheckForSubscriptionChangesAsync method to return a bool value as below


private static async Task CheckForSubscriptionChangesAsync(string subscriptionId, string resource, TraceWriter log)
{
  return true;
}

Let's publish the function app and lets see what type of a notification comes when we send an email, i sent this simple email and its available in SentItems folder



You can see the function log as below

Let's extract the notification message and analyze it further, When the subscribed resource changes, it sends notification data as below, You can see the resource url like this,  it shows something with user messages, Users/5856adc9-b5f4-4c7c-b972-b61c85eb1a75/Messages/AAMkAGNkYmExZTUyLTY2ZWEtNDMwZC1hN2ZiLTAyNGY2NjNhMTYyNgBGAAAAAABRKYBMmikcRpuYs9cJmo5oBwAspzQl_QVxTLNPv1rnaRExAAAAAAEJAAAspzQl_QVxTLNPv1rnaRExAAIvUGydAAA=

2018-06-12T05:14:13.896 [Debug] Raw request content: {"value":[
 {

"subscriptionId":"74d1bb75-fcbf-4ab1-acaf-d2cf10cfcb85",
"subscriptionExpirationDateTime":"2018-06-13T18:23:45.9356913+00:00",
"changeType":"created",
"resource":"Users/5856adc9-b5f4-4c7c-b972-b61c85eb1a75/Messages/AAMkAGNkYmExZTUyLTY2ZWEtNDMwZC1hN2ZiLTAyNGY2NjNhMTYyNgBGAAAAAABRKYBMmikcRpuYs9cJmo5oBwAspzQl_QVxTLNPv1rnaRExAAAAAAEJAAAspzQl_QVxTLNPv1rnaRExAAIvUGydAAA=",
"resourceData":
   {
    "@odata.type":"#Microsoft.Graph.Message",
    "@odata.id":"Users/5856adc9-b5f4-4c7c-b972-b61c85eb1a75/Messages/AAMkAGNkYmExZTUyLTY2ZWEtNDMwZC1hN2ZiLTAyNGY2NjNhMTYyNgBGAAAAAABRKYBMmikcRpuYs9cJmo5oBwAspzQl_QVxTLNPv1rnaRExAAAAAAEJAAAspzQl_QVxTLNPv1rnaRExAAIvUGydAAA=",         "@odata.etag":"W/\"CQAAABYAAAAspzQl+QVxTLNPv1rnaRExAAMIFQ3f\"",                           "id":"AAMkAGNkYmExZTUyLTY2ZWEtNDMwZC1hN2ZiLTAyNGY2NjNhMTYyNgBGAAAAAABRKYBMmikcRpuYs9cJmo5oBwAspzQl_QVxTLNPv1rnaRExAAAAAAEJAAAspzQl_QVxTLNPv1rnaRExAAIvUGydAAA="
   },
"clientState":"subscription-identifier"
},

 {
 "subscriptionId":"11937f92-0520-4f44-bf8a-5c32b6cbd7aa",
 "subscriptionExpirationDateTime":"2018-06-13T18:23:45.9356913+00:00",
 "changeType":"created",
 "resource":"Users/5856adc9-b5f4-4c7c-b972-b61c85eb1a75/Messages/AAMkAGNkYmExZTUyLTY2ZWEtNDMwZC1hN2ZiLTAyNGY2NjNhMTYyNgBGAAAAAABRKYBMmikcRpuYs9cJmo5oBwAspzQl_QVxTLNPv1rnaRExAAAAAAEJAAAspzQl_QVxTLNPv1rnaRExAAIvUGydAAA=",
"resourceData":
  {
   "@odata.type":"#Microsoft.Graph.Message",
   "@odata.id":"Users/5856adc9-b5f4-4c7c-b972-b61c85eb1a75/Messages/AAMkAGNkYmExZTUyLTY2ZWEtNDMwZC1hN2ZiLTAyNGY2NjNhMTYyNgBGAAAAAABRKYBMmikcRpuYs9cJmo5oBwAspzQl_QVxTLNPv1rnaRExAAAAAAEJAAAspzQl_QVxTLNPv1rnaRExAAIvUGydAAA=",         "@odata.etag":"W/\"CQAAABYAAAAspzQl+QVxTLNPv1rnaRExAAMIFQ3f\"",                       "id":"AAMkAGNkYmExZTUyLTY2ZWEtNDMwZC1hN2ZiLTAyNGY2NjNhMTYyNgBGAAAAAABRKYBMmikcRpuYs9cJmo5oBwAspzQl_QVxTLNPv1rnaRExAAAAAAEJAAAspzQl_QVxTLNPv1rnaRExAAIvUGydAAA="
},
"clientState":"subscription-identifier"
},

Graph subscription notifies the new email messages as above, lets try to process them in following method, pass the notification string to WebhookNotification class and process it



 private static async Task ProcessWebhookNotificationsAsync(HttpRequestMessage req, TraceWriter log, Func> processSubscriptionNotification)
{
  // Read the body of the request and parse the notification
  string content = await req.Content.ReadAsStringAsync();
  log.Verbose($"Raw request content: {content}");

   var webhooks = JsonConvert.DeserializeObject(content);
  if (webhooks?.Notifications != null)
  {
    // Since webhooks can be batched together, loop over all the notifications we receive and process them separately.
     foreach (var hook in webhooks.Notifications)
     {
       log.Info($"Hook received for subscription: '{hook.SubscriptionId}' Resource: '{hook.Resource}', changeType: '{hook.ChangeType}'");
       try
       {
         await processSubscriptionNotification(hook);
       }
       catch (Exception ex)
       {
         log.Error($"Error processing subscription notification. Subscription                         {hook.SubscriptionId} was skipped. {ex.Message}", ex);
        }
     }
   // After we process all the messages, return an empty response.
   return req.CreateResponse(HttpStatusCode.NoContent);
  }
  else
  {
    log.Info($"Request was incorrect. Returning bad request.");
    return req.CreateResponse(HttpStatusCode.BadRequest);
  }
}

 Add WebhookNotification helper class with array of notifications


 private class WebhookNotification
{
 [JsonProperty("value")]
 public SubscriptionNotification[] Notifications { get; set; }
}

Add new class called SubscriptionNotification to hold the notification details



private class SubscriptionNotification
{
  [JsonProperty("clientState")]
  public string ClientState { get; set; }
  [JsonProperty("resource")]
  public string Resource { get; set; }
  [JsonProperty("subscriptionId")]
  public string SubscriptionId { get; set; }
  [JsonProperty("changeType")]
  public string ChangeType { get; set; }
 }

Change the implementation in CheckForSubscriptionChangesAsync method, It needs to get the accesstoken to connect to Graph API and retrieve the email body. Let's see how we can get an accesstoken later in this post.
You can create a httpclient and provide Graph API base url with resource url we got from the notification in function app, after getting the response, we can extract the subject and content properties like this



private static async Task CheckForSubscriptionChangesAsync(string resource, TraceWriter log)
{
 bool success = false;

  // Obtain an access token
 string accessToken = System.Environment.GetEnvironmentVariable("AccessToken",                                      EnvironmentVariableTarget.Process);
 log.Info($"accessToken: {accessToken}");

  HttpClient client = new HttpClient();

  // Send Graph request to fetch mail
 HttpRequestMessage request = new HttpRequestMessage(HttpMethod.Get, "https://graph.microsoft.com/v1.0/" + resource);

  request.Headers.Authorization = new AuthenticationHeaderValue("Bearer", accessToken);

 HttpResponseMessage response = await           client.SendAsync(request).ConfigureAwait(continueOnCapturedContext: false);

 log.Info(response.ToString());

  if (response.IsSuccessStatusCode)
 {
  var result = await response.Content.ReadAsStringAsync();

   JObject obj = (JObject)JsonConvert.DeserializeObject(result);

   string subject = (string)obj["subject"];
  log.Verbose($"Subject : {subject}");

   string content = (string)obj["body"]["content"];
  log.Verbose($"Email Body : {content}");

   success = true;
 }

  return success;
}

 You can see the complete Run method as follows, At the first run, Graph API is going to send a request to function app with validationtoken, if it returns the token again, its a valid notification url. Then its going to register a web hook subscription with function app url.
When email sent from your mail box, it sends a notification to registered web hook url and from function app its going to process the notification


[FunctionName("EmailTrigger")]
public static async Task Run([HttpTrigger(AuthorizationLevel.Function, "get", "post",
 Route = null)]HttpRequestMessage req, TraceWriter log)
{
  log.Info("C# HTTP trigger function processed a request.");

  string validationToken;
  if (GetValidationToken(req, out validationToken))
  {
    return PlainTextResponse(validationToken);
  }

  //Process each notification
  var response = await ProcessWebhookNotificationsAsync(req, log, async hook =>
  {
   return await CheckForSubscriptionChangesAsync(hook.Resource, log); }); return response; }

5.5 Generate access token & run the application


Open postman, go to Authorization tab, you will see Type drop down, from there select OAuth 2.0


Click on Get New Access Token button to get an access token to connect to Graph API



You can see a window like this, we have to give authorization urls and application specific details to get an access token, You can give a name for this token, in this example it's AADGraph

You have to provide the Auth URL as https://login.microsoftonline.com/common/oauth2/v2.0/authorize that used to be the redirect url in office 365 app registration
Access token URL should be https://login.microsoftonline.com/common/oauth2/v2.0/token with token endpoint

If you remember, we registered an application to connect to Office365 as shown below




You have to find your Application Id & client secret, Let's navigate to application details as below, Copy Application Id & Application secret, If you cant remember the secret, you can click on Generate New Password and you will get a new secret

You have to provide a value for scope, https://graph.microsoft.com/mail.readwrite, we have to get read write permission in your mail box. you can leave the Grant type value as it is, Authorization Code and click on Request Token


You will prompt to this screen, select your account


You can see access token and expiry time as below, click on Use Token to get the access token


Then you can see Authorization key & token  is added in headers section as below


If you remember, in our function app log, we found resource url is written like this, Users/5856adc9-b5f4-4c7c-b972-b61c85eb1a75/Messages/AAMkAGNkYmExZTUyLTY2ZWEtNDMwZC1hN2ZiLTAyNGY2NjNhMTYyNgBGAAAAAABRKYBMmikcRpuYs9cJmo5oBwAspzQl_QVxTLNPv1rnaRExAAAAAAEJAAAspzQl_QVxTLNPv1rnaRExAAIvUGydAAA=
Let's try to get the email message with this url & registered access token, We have to get the Graph API url https://graph.microsoft.com/v1.0/ and append the mail message url to that
You can see the email message along with some metadata

We have to provide this access token as a configuration to our function app You can see AccessToken is added to Application settings as below


We have provided the access token to connect to your email box and read email content, Let's see how it actually works with Function App, Open your app and click on Run, it shows 400 as response code since we haven't got any notifications


Let's send an email like this to test our function app


You can see the function log window like this, it has printed email subject as below


Email body is printed with all the stylle changes like this



6 Download

6.1 TechNet Gallery


Source code can be downloaded from here, .NET Core app tracks changes in mail box

6.2 GitHub


You can clone this repository from git hub Track mail box changes using Graph API on .NET Core

7 Conclusion


In this article, we created a function in .NET Core and published it into Azure Function App. We used subscription API in Microsoft Graph to subscribe to a resource, in this example resource is SentItems folder in mail box. When we send an email from our mail box it will notify to the published function with email details, We used a preview version of Azure Function App on top of .NET Core
We had to pass an authentication token to read an email, to retrieve the token should ping to redirect url in Office 365 app registration, Graph application id, password with required scope


8 References


Posted by at 4 comments:
Labels: , , , , , , , , ,
Subscribe to: Posts (Atom)
