Angular 6 - Input restrictions in a form

Introduction


This article is going to describe how to restrict some values typing in a text box input field, We have used Angular 6 to develop this application using Visual Studio Code as the IDE, Let's see how to do it

Background



Create Angular project


Let's create an angular project from Visual Studio Code terminal window, Open Visual Studio Code and navigate to the menu, click on Terminal and then New Terminal. You can type ng new command to create a new angular project as follows,

ng new <projectname>













A new project is created and you can check file explorer to check created files, We are going to change app.component.html and insert a form with some text inputs

























Let's build the angular application with build command,

ng build














Run the application and try to access it from http://localhost:4200/

ng serve














You can see the application in the browser like this,
















Let's change app.component.html page and add a student creation form like this,













We want to add a dropdown control to select Gender value, let's add it











When you add ng-select component, it shows following parser error, it says ng-select is not a known element,








Let's install ng-select package to this solution and check how it works









We have to import ng-select module in app.module file to use it in the solution























import { NgSelectModule } from '@ng-select/ng-select';

You can see student create form as below, its working fine since we added necessary libraries like ng-select library






















Let's inspect the code and check how it works, You can see how bootstrap classes and input controls have been used. Postal No and Gender values rendered as dropdown controls. We have to fetch some values from the server and bind into it. Let's try to start with that







































We have partially completed implementing HTML view, let's try to fill initial data in to form such as Gender and Postal code dropdown values,
We have to get data from the server when form loads, so let's implement ngOnInit event in app.component.ts, before that we have to get necessary libraries, let's implement OnInit in the component as below

export class AppComponent implements OnInit {

It shows cannot find name 'OnInit', we haven't added necessary libraries to the .ts file,
















Let's add OnInit library from angular/core and try to resolve the issue

import { Component, OnInit } from '@angular/core';


















In the code, it extends from OnInit interface but necessary methods are not added yet, let's add ngOnInit method in app.component.ts file

ngOnInit(){

}





















Create a Service project

Let's start to create a service project using Visual Studio 2017, Go to available templates to create a ASP.NET Core Web application

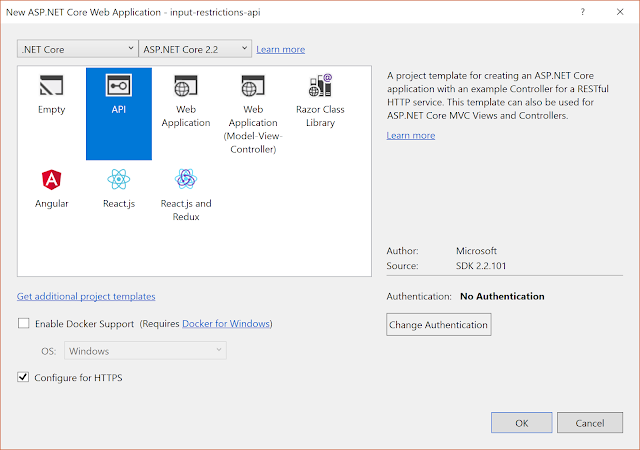

When you click on OK button, you will be able to see available templates for ASP.NET Core 2.2, Let's select API project from available templates and go with the default screen




























Your API project is created. After that will try to create a shared project to hold our common business logic. Let's add a new project and create a shared project in .NET framework.




























You can see the solution with 2 projects, Web API project & Shared project as follows,











Let's create a class to hold common objects. MasterData class will hold data for Gender and PostalCode, we want these lists to populate dropdowns.

























namespace input_restrictions_dal.Dto

   public class MasterData
   {
      public IEnumerable Gender { get; set; }
      public IEnumerable PostalCode { get; set; }
   }

   public class DropDownField
   {
      public int Id { get; set; }
      public string Value { get; set; }
    }

    public class PostalCodefield
    {
       public int Id { get; set; }
       public string Code { get; set; }
       public string City { get; set; }
     }
   }

We want to hold gender values in a enum, you will see these values in Gender dropdown












namespace input_restrictions_dal.Enum

   public enum Gender
   {
      Male = 1,
      Female = 2
    }


Open startup class to check what happens when the application starts. We have to enable necessary configurations to communicate with the client application.
We have to enable CORS to allow communication with any origin as below, Let's add necessary code lines into ConfigureServices and Configure method.

































public void ConfigureServices(IServiceCollection services)

  services.AddCors(o =>
  {
    o.AddPolicy("AllowAnyOrigin", builderCor =>
    {
       builderCor.AllowAnyOrigin().AllowCredentials().AllowAnyHeader().AllowAnyMethod();
    });
    o.DefaultPolicyName = "AllowAnyOrigin";
  });
}


public void Configure(IApplicationBuilder app, IHostingEnvironment env)

   app.UseHttpsRedirection();
   app.UseCors("AllowAnyOrigin");
   app.UseMvc();
}

Let's move to the API project and create the service interface as IStudentInterface as below.














using input_restrictions_dal.Dto;

namespace input_restrictions_api.Service
{
    public interface IStudentService
    {
        MasterData GetMasterData();
    }
}


Let's implement the interface in StudentService class to populate masterdata.
























using System;
using System.Collections.Generic;
using input_restrictions_dal.Dto;
using input_restrictions_dal.Enum;
using System.Linq;

namespace input_restrictions_api.Service

  public class StudentService : IStudentService
  {
     public MasterData GetMasterData()
     {
        MasterData masterData = new MasterData
        {
          Gender = (from Gender g in Enum.GetValues(typeof(Gender))
                    select new
                    {
                       ID = Convert.ToInt32(g),
                       Name = g.ToString()
                    }).Select(s => new DropDownField()
                                  {
                                     Id = s.ID,
                                     Value = s.Name
                                   }).ToList(),
          PostalCode = new List {
             new PostalCodefield {Id =1, Code="00130", City = "Colombo"},
             new PostalCodefield { Id = 1, Code = "20000", City = "Kandy" },
             new PostalCodefield { Id = 1, Code = "80000", City = "Galle" } }
        };
        return masterData;
       }
      }
    }

Let's create StudentController class and implement data retrieval service method as below,
We are calling service methods created in the previous step, Service method is a GET request and we named it as masterdata. It produces two results when it succeeds returns OK status with Masterdata object and else NotFound. It's better to describe all the possibilities in a service method as above.



































using Microsoft.AspNetCore.Mvc;
using input_restrictions_api.Service;
using input_restrictions_dal.Dto;
using System.Net;

namespace input_restrictions_api.Controllers

  [Route("api/[controller]")]
  [ApiController]
  public class StudentController : ControllerBase
  {

    private readonly IStudentService _studentService;

    public StudentController()
    {
      _studentService = new StudentService();
    }

    [HttpGet("masterdata")]
    [ProducesResponseType(typeof(MasterData), (int)HttpStatusCode.OK)]
    [ProducesResponseType((int)HttpStatusCode.NotFound)]
    public ActionResult MasterData()
    {
       MasterData masterData = _studentService.GetMasterData();
       return Ok(masterData);
    }
 }
}

Add Validation in the Client App


You can see the student creation form with angular model bindings in app.component.html, We have applied some directives to restrict the input in these controls. Let's discuss them in detail at the end of this post.























Let's open app.component.ts file and check OnInit method, it calls service method and pass data to the HTML page with angular model bindings










































import { Component, OnInit } from '@angular/core';
import { MasterData } from './shared/masterdata.model';
import { DataService } from './shared/data.service';
import { Member } from './shared/member.model';

@Component({
 selector: 'app-root',
 templateUrl: './app.component.html',
 styleUrls: ['./app.component.css']
})

export class AppComponent implements OnInit {
  masterData: MasterData;
  member: Member;

  constructor(private dataService : DataService) {

 }

 ngOnInit(){
   this.masterData = new MasterData();
   this.member = new Member();
   this.GetMasterData();


GetMasterData () {
  this.dataService.GetMasterData().subscribe(
     data => {
        this.masterData = data;
     },
     err => {
        throw err; }
    );



When Postal No changes, Postal Place should populate with the appropriate city as per the requirement, we have to implement dropdown change event as below.

















onPostalNoChange(event) {
  if (event == null) {
    this.member.postalPlace = '';
  }
  else {
    this.masterData.postalCode.forEach(entry => {
      if (entry.code == event.code) {
         this.member.postalPlace = entry.city;
        }
     });
 }
}

You can see the app.module file, all the imported modules and custom directives we created are added.








































import { NgSelectModule } from '@ng-select/ng-select';
import { HttpClientModule } from '@angular/common/http';

import { LettersOnlyDirective} from './directives/letters.directive';
import {PhoneNoDirective} from './directives/phoneno.directive';
import {SSNDirective} from './directives/ssn.directive';
import {LettersNumbersOnly} from './directives/letters-numbers.directive';
import {DecimalNumberOnlyDirective} from './directives/decimal-number.directive';

Check data.service.ts file in the shared folder, it responsible to call service API methods as in GetMasterData method. You will see the value of api_url in environments file


























import { HttpClient } from '@angular/common/http'
import { Observable } from 'rxjs'
import { MasterData } from "./masterdata.model";
import { environment } from "src/environments/environment";
import { Injectable } from '@angular/core';

@Injectable({
  providedIn: 'root'
 })

export class DataService {

  constructor(private http : HttpClient) {}

  GetMasterData () : Observable<MasterData>{
    return this.http.get(environment.api_url + '/student/masterdata');
  }
 }


Let's see the model classes in the client application. we have to map service method data in the frontend classes, so we created a MasterData class as shown below.












import { PostalCodeMasterData } from "./masterdata.postalcode.model";

export class MasterData {
    gender : Array<object>;
    postalCode : Array<PostalCodeMasterData>;
}

We have to create a typescript class to hold the postal code data











export class PostalCodeMasterData {
   zipCodeId : number;
   code : string;
   city : string;
}

Finally, we want to add a class to hold member model as below,




















export class Member {
   firstName: string;
   lastName: string;
   phone: string;
   email: string;
   ssn: string;
   gender: string;
   postalNo: number;
   postalPlace: string;
   addressLine1: string;
   addressLine2: string;
   gpa: string;
   certificateIssued: boolean;
}

We can restrict inputs in firstname and lastname fields using this directive, specials keys are allowed other than that.
It checks for a specific input as per the regular expression shown below.
It listens to key down and paste event to capture the inputs in that specific control.
As per the regular expression used, we can input only the letters simple or in capital letters.


//validate firstname and lastname
import { Directive, ElementRef, HostListener} from '@angular/core';

@Directive({
  selector: '[lettersOnly]'
})

export class LettersOnlyDirective{
  private regex: RegExp = new RegExp(/^[a-zA-Z]+$/g);
  private specialKeys: Array = ['Backspace', 'Tab', 'End', 'Home'];

  constructor(private el: ElementRef) {
  }

  @HostListener('paste', ['$event']) onkeydown(e: any) {
    var value = e.clipboardData.getData('Text');
    if (value && !String(value).match(this.regex)) {
       event.preventDefault();
    }
  }

  @HostListener('keydown', ['$event'])
  onKeyDown(event: KeyboardEvent) {
     if (this.specialKeys.indexOf(event.key) !== -1) {
        return;
     }

     let current: string = this.el.nativeElement.value;
     let next: string = current.concat(event.key);
     if (next && !String(next).match(this.regex)) {
        event.preventDefault();
     }
   }
}

We can restrict inputs for a phone no filed using this directive, it allows only to enter + value and then numbers









































//validate phone no
import { Directive, ElementRef, HostListener } from '@angular/core';

@Directive({
  selector: '[phoneOnly]'
})

export class PhoneNoDirective {
  private regex: RegExp = new RegExp(/^(\+)[0-9]{0,11}$/g);
  private specialKeys: Array = ['Backspace', 'Tab', 'End', 'Home'];

  constructor(private el: ElementRef) {
  }

  @HostListener('paste', ['$event']) onkeydown(e: any) {
    var pastedvalue = e.clipboardData.getData('Text');
    var value = this.el.nativeElement.value + pastedvalue;
    if (value && !String(value).match(this.regex)) {
       event.preventDefault();
    }
  }

  @HostListener('keydown', ['$event'])
  onKeyDown(event: KeyboardEvent) {
    if (this.specialKeys.indexOf(event.key) !== -1) {
       return;
     }
    let current: string = this.el.nativeElement.value;
    let next: string = current.concat(event.key);
    if (next && !String(next).match(this.regex)) {
       event.preventDefault();
    }
   }
 }

Check this directive restricts ssn no in noregian format, please have a look for sample ssn nos, How to generate a ssn number in norway








































//validate ssn
import { Directive, ElementRef, HostListener } from '@angular/core';

@Directive({
  selector: '[ssnNumber]'
})

export class SSNDirective {
  private regex: RegExp = new RegExp(/^[0-9]{1,6}( ){0,1}([0-9]){0,5}$/g);
  private specialKeys: Array = ['Backspace', 'Tab', 'End', 'Home'];

  constructor(private el: ElementRef) {
  }

  @HostListener('paste', ['$event']) onkeydown(e: any) {
    var pastedvalue = e.clipboardData.getData('Text');
    var value = this.el.nativeElement.value + pastedvalue;
    if (value && !String(value).match(this.regex)) {
       event.preventDefault();
    }
  }

  @HostListener('keydown', ['$event'])
  onKeyDown(event: KeyboardEvent) {
    if (this.specialKeys.indexOf(event.key) !== -1) {
       return;
     }
     let current: string = this.el.nativeElement.value;
     let next: string = current.concat(event.key);
     if (next && !String(next).match(this.regex)) {
       event.preventDefault();
     }
   }
 }

We can validate address fields with the given directive, it allows to enter letters and number only, no special characters









































//validate address line 1 and 2
import { Directive, ElementRef, HostListener } from '@angular/core';

@Directive({
  selector: '[lettersNumbersOnly]'
})

export class LettersNumbersOnly {
  private regex: RegExp = new RegExp(/^[a-zA-Z0-9 ]+$/g);
  private specialKeys: Array = ['Backspace', 'Tab', 'End', 'Home'];

  constructor(private el: ElementRef) {
  }

  @HostListener('paste', ['$event']) onkeydown(e: any) {
    var value = e.clipboardData.getData('Text');
    if (value && !String(value).match(this.regex)) {
       event.preventDefault();
    }
  }

  @HostListener('keydown', ['$event'])
  onKeyDown(event: KeyboardEvent) {
    if (this.specialKeys.indexOf(event.key) !== -1) {
      return;
    }
    let current: string = this.el.nativeElement.value;
    let next: string = current.concat(event.key);
    if (next && !String(next).match(this.regex)) {
       event.preventDefault();
    }
  }
}

We can validate for decimal numbers like gpa value with following regular expression











































//validate gpa
import { Directive, ElementRef, HostListener } from '@angular/core';

@Directive({
    selector: '[decimalnumberOnly]'
})

export class DecimalNumberOnlyDirective {
    //with decimals
    private regex: RegExp = new RegExp(/^[0-9]+(\.[0-9]*){0,1}$/g);
  private specialKeys: Array<string> = ['Backspace', 'Tab', 'End', 'Home'];

    constructor(private el: ElementRef) {
  }

@HostListener('paste', ['$event']) onkeydown(e: any) {
    var pastedvalue = e.clipboardData.getData('Text');
    var value = this.el.nativeElement.value + pastedvalue;
    if (value && !String(value).match(this.regex)) {
        event.preventDefault();
    }
}

@HostListener('keydown', ['$event'])
onKeyDown(event: KeyboardEvent) {
    if (this.specialKeys.indexOf(event.key) !== -1) {
        return;
    }
    let current: string = this.el.nativeElement.value;
    let next: string = current.concat(event.key);
    if (next && !String(next).match(this.regex)) {
        event.preventDefault();
    }
}
}

If you remember, we used api_url value from an environment variable, You can see it as given below.
We can use this file for development purpose and create a environment.prod.ts file directing the production environment.














export const environment = {
  production: false,
  api_url : 'http://localhost:50844/api'
};

You can see the folder structure in the service project as follows, It has API project with controllers, service classes, startup and appsettings file.


























You can see front end solution structure with directives we explained, shared data models, service method classes and separate configuration files for different environments (development and production). The screen is rendered from app.component





























































Download


TechNet Gallery


You can download the sample code from here, Apply Input Restriction in Angular 6

GitHub


You can clone the sample code from this repo, ng-input-restrictions


Conclusion


In this article, it describes how to apply input restrictions to form controls using Angular 6. The sample code has used .NET Core Web API project to develop the service layer. We used different directives to achieve this.


References



2 comments:
