Monday, June 26, 2017

ASP.NET Core : Advanced JQuery dialog actions


Introduction

This article explains how to show same confirmation box when different actions performs in a page. This demonstration creates a web application in ASP.NET Core using Visual Studio 2017

Background

If you want to know how to create a Web API application in .NET Core, check this article https://social.technet.microsoft.com/wiki/contents/articles/36340.asp-netcore-create-a-web-api-application.aspx

Learn how to secure a .NET Core web application with Identity Server 4, https://social.technet.microsoft.com/wiki/contents/articles/37169.secure-your-netcore-web-applications-using-identityserver-4.aspx

Check this article if you want to secure a web application using ASP.NET Identity, with less coding https://social.technet.microsoft.com/wiki/contents/articles/37797.asp-net-identity-customize-user-authentication.aspx

Say Hello! to .NET Core in a Linux server, https://social.technet.microsoft.com/wiki/contents/articles/36330.net-core-with-a-linux-server-hello-world.aspx

If you are curious to know how to install .NET Core in a Linux server, go through this article https://social.technet.microsoft.com/wiki/contents/articles/36318.install-netcore-in-a-linux-server.aspx

Check this article to know how to create a web application in .NET Core on top of a Linux server, https://social.technet.microsoft.com/wiki/contents/articles/36333.create-a-web-application-in-netcore-with-a-linux-server.aspx

If you are interested to know how to use a template generator like Yeoman to create a web application template, please go through this article, https://social.technet.microsoft.com/wiki/contents/articles/36334.net-core-create-web-application-with-yeoman-template-generator.aspx

Create a Web application

Create a web application using Visual Studio 2017, Select ASP.NET Core Web application from C# category



























Select Empty application from ASP.NET Core templates
























Add landing page as index.html in wwwroot folder

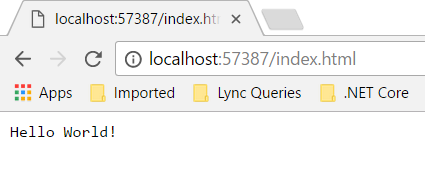

Run the application and see what happens, it still shows Hello World! shows from Startup class, Let's try to set index.html file as startup page














Add header tag in index page














Let's change index.html page like this



Let's create a course web page, it displays list of modules each course has and multiple images and videos relevant to the course. When try to remove a module or an image it shows a jquery confirmation dialog, Let's see how we can show same Jquery dialog popup for all these entities (for a list of modules, set of images and videos)

Create Course web page

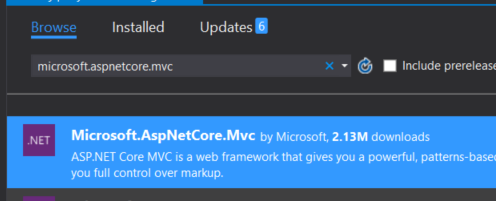

First of all, let's install ASP.NET Core MVC into the application, Go to Nuget Package Manager explorer and secrch for ASP.NET Core MVC and install mvc libraries














Create Home Controller


Create Controllers folder and add a controller, Fill Index method as follows, it's going to print below text in browser window, action method route is defined using Route attribute, When you navigate to /home it will show this text.













Run the application and navigate to home, You can view page as follows











Create a View

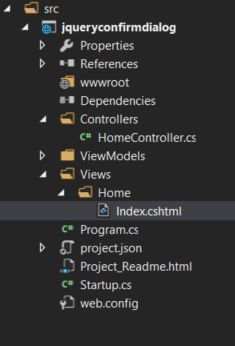

Create Views folder in project root directory, create index view inside Views/Home folder,






















Run the application and see what it shows, navigate to home path, it shows empty page as below.













Create CourseViewModel


Create ViewModels folder in project root folder, add Course viewmodel into it. Add list of modules. images and videos as below. I created Module class inside Course class, since Course contains list of Modules



































 public class Course
    {

        public int Id { get; set; }

        public string CourseTitle { get; set; }
        public List<Module> Modules { get; set; }

        public List<string> CourseImageUrls { get; set; }
        public List<string> CourseVideoUrls { get; set; }

    }

    public class Module
    {
        public int Id { get; set; }

        public string Title { get; set; }

        public string Level { get; set; }

        public string Lecturer { get; set; }

    }






















Go to HomeController and populate course viewmodel as follows, change Route attribute in Index action method











public class HomeController : Controller
    {
        // GET: /<controller>/
        [Route("/")]
        public IActionResult Index()
        {
            List<Module> modules = new List<Module>() { new Module {Id = 1, Title = "Frontiers of Physics", Level = "Beginner", Lecturer = "Simon De Silva" },
                new Module { Id = 2, Title = "Quantum Physics", Level = "Beginner", Lecturer = "Simon De Silva" },
                new Module { Id = 3, Title = "Mathematics for Physicists", Level = "Advanced", Lecturer = "Ryan Perera" } };
            List<string> imageUrls = new List<string>() { "http://physicslocker.com/physicslocker/images/physics.jpg", "http://physics.uconn.edu/wp-content/uploads/sites/1363/2015/08/physics.png",
                "http://www.aplusphysics.com/assets/images/slide05.png" };
            List<string> videoUrls = new List<string>() { "https://www.youtube.com/embed/DxQK1WDYI_k", "https://www.youtube.com/embed/4xSPlQUejd8" };
            Course course = new Course() { Id = 1, CourseTitle = "Physics", Modules = modules, CourseImageUrls = imageUrls, CourseVideoUrls = videoUrls };
            return View(course);
        }
    }


Add Course viewmodel in Index page and show all course properties as below, show course information along with module list







































@model jqueryconfirmdialog.ViewModels.Course

<div>
    @Html.HiddenFor(model => model.Id)
    Course: @Html.DisplayFor(model => model.CourseTitle)
</div>
<br/>

<table>
    <thead>
        <tr>
            <th style="display:none">
            </th>
            <th>
                @Html.DisplayName("Module")
            </th>
            <th>
                @Html.DisplayName("Lecturer")
            </th>
            <th>
                @Html.DisplayName("Level")
            </th>
            <th></th>
        </tr>
    </thead>
    <tbody>
        @foreach(var item in Model.Modules)
        {
            <tr>
                <td style="display:none">
                    @Html.HiddenFor(modelItem => item.Id)
                </td>
                <td>
                    @Html.DisplayFor(modelItem => item.Title)
                </td>
                <td>
                    @Html.DisplayFor(modelItem => item.Lecturer)
                </td>
                <td>
                    @Html.DisplayFor(modelItem => item.Level)
                </td>
                <td id="@item.Id">
                    @Html.ActionLink("Remove", "Delete", new { id = item.Id }, new { @id = "btnRemove" })
                </td>
            </tr>
        }
    </tbody>
</table>
<br/>

course related images and videos are shown below
















<br/>
<div>
    @for (var i = 0; i < Model.CourseImageUrls.Count; i++)
    {
        if (!string.IsNullOrEmpty(Model.CourseImageUrls[i]))
        {
            <img id="image_@Model.CourseImageUrls[i]" src="@Url.Content(Model.CourseImageUrls[i])" style="width:200px; height:200px" />
        }
        <input id="btnImageRemove" type="button" value="Remove" class="btn btn-default" />
    }
</div>
<br/>
<div>
    @for (var i = 0; i < Model.CourseVideoUrls.Count; i++)
    {
        if (!string.IsNullOrEmpty(Model.CourseVideoUrls[i]))
        {
            <object width="320" height="240" data="@Url.Content(Model.CourseVideoUrls[i])"></object>
        }
        <input id="btnVideoRemove" type="button" value="Remove" class="btn btn-default" />
    }
</div>

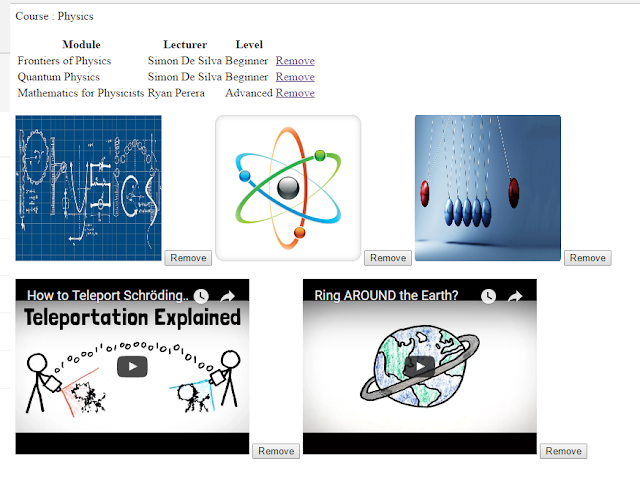

Run your application and see what it shows, It shows course name, list of available modules, images and videos related to the course


































Now show a confirmation dialog box when you want to delete a module, when deleting an image and video, for all these 3 actions need to use same Jquery dialog box, Let's see how we can achieve that

When document loads, write jquery method to show delete module click event,
select remove link in modules list and try to show confirm dialog box, When calliing confirm dialog box it assign two parameters as type and module, When we set parameters in click event, we can extract them in dialog box initialisation



















<script>

    $(function () {
        debugger;
        $('a[id*=btnRemove]').click(function (e) {
            debugger;
            e.preventDefault();
            var id = $(this).parent()[0].id;
            var data = $('#confirmDialog').data();
            data.type = 1;
            data.module = id;
            $('#confirmDialog').dialog('open');
        });
    });

</script>

When we run this applicaation, it says jquery and jquery ui are not defined, let;s add those external script libraries into course web page. In this example it has added min version of Jquery & Jquery-ui






<script src="https://ajax.aspnetcdn.com/ajax/jquery/jquery-2.2.0.min.js"></script>
<script src="https://ajax.aspnetcdn.com/ajax/jquery.ui/1.11.4/jquery-ui.min.js"></script>

create confirm dialog box as below,






<div id="confirmDialog" title="Save changes" hidden>
    <p>Do you want to save changes </p>
</div>



Run your application and click on Remove link, it shows error page as below, It says confirm dialog initialisation has not happened, we have to initialize the confirm dialog box before open it
































Let's initialize confirmation dialog box as follows, we'll implement OK button later in this example

















$("#confirmDialog").dialog({
            autoOpen: false,
            modal: true,
            resizable: false,
            buttons: {
                "Ok": function () {

                },
                "Cancel": function (e) {
                    $(this).dialog("close");
                }
            },
        });




Run application and check whether confirmation dialog box shows


























It shows as above, let's add some css changes and style this a bit, Add references to Jquery and Jquery-ui style files






<link rel="stylesheet" href="https://ajax.aspnetcdn.com/ajax/bootstrap/3.3.6/css/bootstrap.min.css"/>
<link rel="stylesheet" href="//code.jquery.com/ui/1.12.1/themes/base/jquery-ui.css"/>




Now run the application and how it looks,




























Let's fill OK button click when removing a module from list, If you remember when Remove link is clicked we passed type as 1 and clicked module id, in OK button of jquery dialog, we can track that



















$("#confirmDialog").dialog({
 autoOpen: false,
 modal: true,
 resizable: false,
 buttons: {
     "Ok": function () {
         var type = $(this).data('type');
         var module = $(this).data('module');
         if(type == 1)
             window.location.href = '/Home/RemoveModule?id=' + module;
      },
     "Cancel": function (e) {
          $(this).dialog("close");
         }
   },
 });

Let's implement controller action method to delete a module









public IActionResult RemoveModule(int id)

 Module module = modules.Find(p => p.Id == id);
 if(module != null)
   modules.Remove(module);
 Course course = new Course() { Id = 1, CourseTitle = "Physics", Modules = modules, CourseImageUrls = imageUrls, CourseVideoUrls = videoUrls };
 return View("Index", course);
 }

We haven't add routing options to this application, let's add default routing, then it will redirect to list of modules page with new list,
Go to startup class and in Configure method ass default routing to handle request urls.







app.UseMvc(routes => routes.MapRoute("default", "{controller=Home}/{action=Index}/{id?}"));
Run the application and delete a module and check whether it works,




















Let's try to remove an image/video from a course, let's take image type as 1 and video type as 2. we have to pass type of resource and specific resource is getting deleted.

    Let's create Resource class to hold Image and Video information











 public class Resource
  {
     public int Id { get; set; }

     public string Url { get; set; }
  }

We had to change modules list used to display the grid as follows,









Let's add image remove button click implementation, using jquery selector ('input[id*=btnImageRemove]') we can track remove link click, then get id attribute of selected parent element as follows,










 $('input[id*=btnImageRemove]').click(function () {
   var id = $(this).parent()[0].id;
   var data = $('#confirmDialog').data();
   data.type = 2;
   data.id = id;
   $('#confirmDialog').dialog('open');
});

as same as image remove link, let's add video remove link











$('input[id*=btnVideoRemove]').click(function () {
 var id = $(this).parent()[0].id;
 var data = $('#confirmDialog').data();
 data.type = 3;
 data.id = id;
 $('#confirmDialog').dialog('open');
 });

When click on OK button in confirm dialog box, it check type of event, according to type at first it removes a module then it tries to remove a image or video























$("#confirmDialog").dialog({
 autoOpen: false,
 modal: true,
 resizable: false,
 buttons: {
 "Ok": function () {
   var type = $(this).data('type');
   if (type == 1) { // remove a module
     var module = $(this).data('module');
     window.location.href = '/Home/RemoveModule?id=' + module;
 }
  else // remove an image or video
 {
   var id = $(this).data('id');
   window.location.href = '/Home/RemoveResource?id=' + id + '&type=' + type;

},
 "Cancel": function (e) {
   $(this).dialog("close"); }
 }
 });


Now let's see how to implemet controller function to remove an image or video





















public IActionResult RemoveResource(int id, int type)

  if (type == 2) //image
  {
   Resource resource = imageUrls.Find(p => p.Id == id);
   if (resource != null)
     imageUrls.Remove(resource);
   }
  else if (type == 3) //videos
  {
   Resource resource = videoUrls.Find(p => p.Id == id);
   if (resource != null)
     videoUrls.Remove(resource);
  }

 Course course = new Course() { Id = 1, CourseTitle = "Physics", Modules = modules,  CourseImageUrls = imageUrls, CourseVideoUrls = videoUrls };

 return View("Index", course);
 }

Let's run this application and check whether it works,

We are showing a course entity along with list of modules, image and video resources. we havent used any storage to store this course entity, simply using a course object.

Conclusion

This article has demonstrated how to show a confirmation dialog box using JQuery in a ASP.NET Core view. and it has used MVC architecture to display this view. In this example it has highlighted how to show multiple confirm dialog boxes in various actions, but using only a div tag. In OK button implementation in this confiirm dialog box, it checks type of the action performed and process necessary steps. Also in this example it has shows how to use multiple parameters in a jquery dialog box
